Anti-corrosion Fin Tube Surface Air Cooler Heat Exchanger
Surface air cooler heat interchanger is widely used in air conditioning refrigeration, dehumidification, heating, gas cooling, waste heat recovery and other projects, and are ideal supporting products for fresh air units and air treatment units. For example, residential air conditioning cooling, compressed air cooling, Marine air conditioning etc.

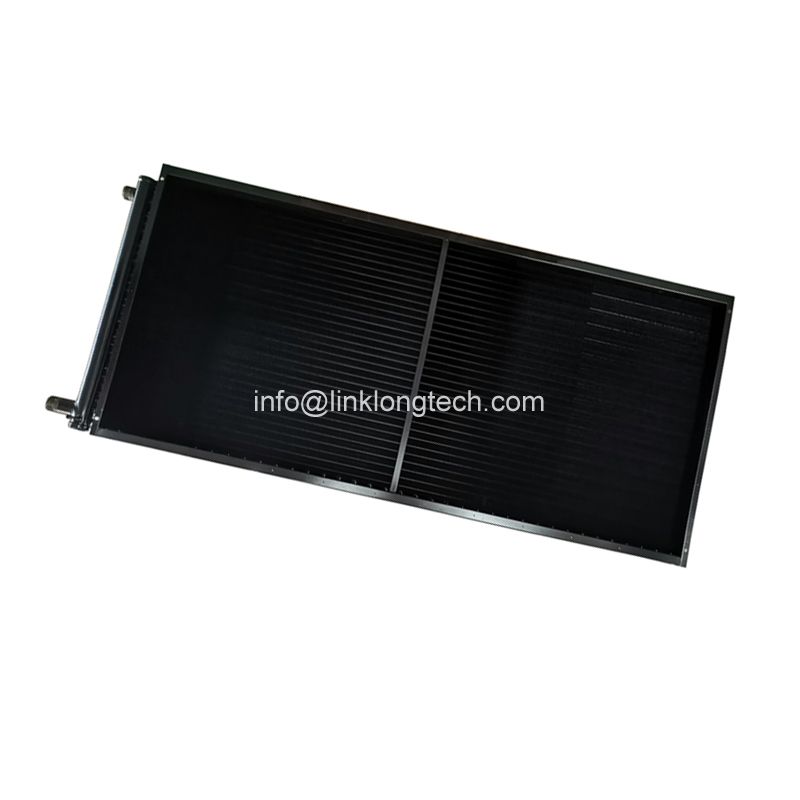

Anti-corrosion Air Cooler Heat Exchanger
Foshan Linklong Technology Company Limited surface air cooler adopts high-quality copper tube (or stainless steel tube) and aluminum sheet (or stainless steel sheet, copper sheet) precision pairing, through advanced mechanical expansion method to make the tube and fin closely connected to ensure maximum heat transfer efficiency. The tubes are arranged in a staggered manner, and the sinusoidal corrugated design of the fins reduces the resistance and improves the smoothness of the fluid, so as to ensure the coil has high efficiency heat transfer performance. Before shipment, all coils were tested for leakage at 3.5Mp pressure, and the products were shipped only after passing the inspection.
Working Principle of Air Cooler
The working principle of the tube surface air cooler is that the heat medium or refrigerant or refrigerant flows through the inner cavity of the metal pipe, but the air that needs to be treated flows through the outer wall of the metal pipe for heat exchange to achieve the purpose of heating or cooling the air.
Common Application of Surface Cooler
Linklong surface cooler heat exchangers are widely used in air conditioning refrigeration, dehumidification, heating, gas cooling, waste heat recovery and other projects, and are ideal supporting products for fresh air units and air treatment units. For example, residential air conditioning cooling, compressed air cooling, Marine air conditioning heat exchange, container air conditioning heat exchange, room air conditioning, airport air conditioning heat exchange, shopping mall air conditioning heat exchange, factory air conditioning heat exchange, large indoor air conditioning heat exchange and other commercial and industrial fields.
Specification
Pipe diameter | Tube Materials | Pitch spacing | Row spacing | Fin materials | Sheet spacing |
Φ9.52 | Copper pipe Internal thread pipe White nickel copper pipe Aluminum pipe Stainless steel pipe (304, 316L) | 25.4mm 25mm | 22mm 21.65mm | Bare aluminum foil Hydrophilic aluminum foil Epoxy anticorrosive aluminum foil Copper foil | 1.5-12mm |
Φ12.7 | Copper pipe Internal thread pipe White nickel copper pipe Aluminum pipe Stainless steel pipe (304, 316L)
| 31.75mm | 27.5mm | Bare aluminum foil Hydrophilic aluminum foil Epoxy anticorrosive aluminum foil Copper foil
| 2.0-8.0mm |
Φ15.88 Φ16 | Copper pipe White nickel copper pipe Aluminum pipe Stainless steel pipe (304,316L)
| 38.1mm
| 33mm | Bare aluminum foil Hydrophilic aluminum foil Epoxy anticorrosive aluminum foil Copper foil Stainless steel sheet
| 2.0-14mm |
Φ25 | Copper pipe Plain pipe Stainless steel pipe (304,316L)
| 60mm | 59.5mm | Bare aluminum foil Hydrophilic aluminum foil Epoxy anticorrosive aluminum foil Copper foil Stainless steel sheet
| 2.0-8.0mm |
