Steam Stailess Steel Coils-副本
Steam coils (or Heat Exchangers) are used for heating applications and they can also be integrated with Air Heat Units (AHUs).

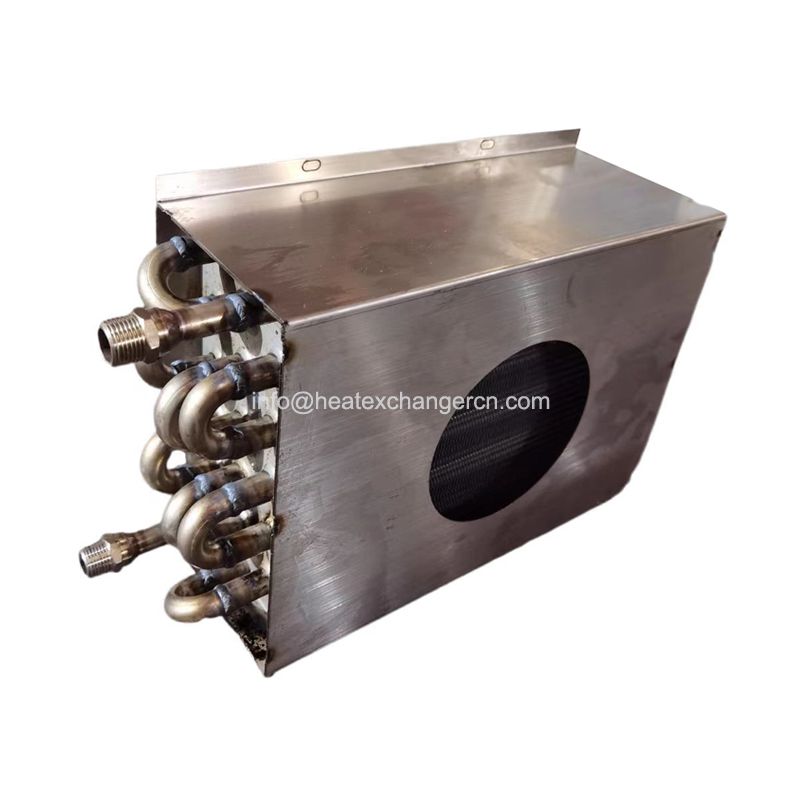

Steam Stailess Steel Coils
Basic information about finned titanium tube condenser coil:
Material: copper tube, aluminum foil, galvanized sheet or aluminum plate
Pipe material: plain pipe, internally threaded pipe, stainless steel pipe, titanium pipe, copper pipe, nickel copper pipe
Fin material: hydrophilic aluminum foil, light aluminum foil, epoxy resin aluminum foil, copper foil, stainless steel sheet
Pipe diameter: 7.94mm, 9.52mm, 12.7mm, 15.88mm, 16mm, 25mm etc.
Fins: shutter fins, flat fins, corrugated fins, pitted fins
Fin spacing: customization
Housing: With or without housing.
Length: customized according to customer needs.
Hole spacing mold: customized according to customer needs.
Leakage test: No leakage under air pressure test.
Finned coil heat exchanger product parameters:
Pipe diameter (mm) | Hole pitch (mm) | Row pitch (mm) | Fin pitch (mm) | Fin materials | Fin type |
Φ7.94 | 22 | 19.05 | 1.2-2.5 | Aluminum foil Hydrophilic aluminum foil Epoxy resin aluminum foil Uncoated aluminum foil Copper foil Stainless steel foil | Flat sheet Corrugated sheet Shutter sheet Pitted sheet |
Φ9.52 | 25.4 | 21.65/22 | 1.4-4.0 | ||
Φ12.7 | 31.75 | 27.5 | 1.4-4.0 | ||
Φ15.88 Φ16 | 38 | 32.91/33 | 1.8-6.0 |
Uncoated aluminum | Blue hydrophilic aluminum | Epoxy resin aluminum | Copper foil | Stainless steel foil |
|
|
|
|
|
