Stainless Steel Tube Fin Evaporator Coil for Waste Heat Recovery Unit
Evaporator coil adopts φ7.94mm, φ9.52mm, φ12.7mm, φ15.88mm or φ16mm copper pipe, white nickel copper pipe, stainless steel pipe; Fin materials have no coating aluminum foil, hydrophilic aluminum foil, epoxy resin anticorrosive aluminum foil, copper foil, stainless steel sheet for customers to choose, to meet the needs of different working conditions and various combinations.

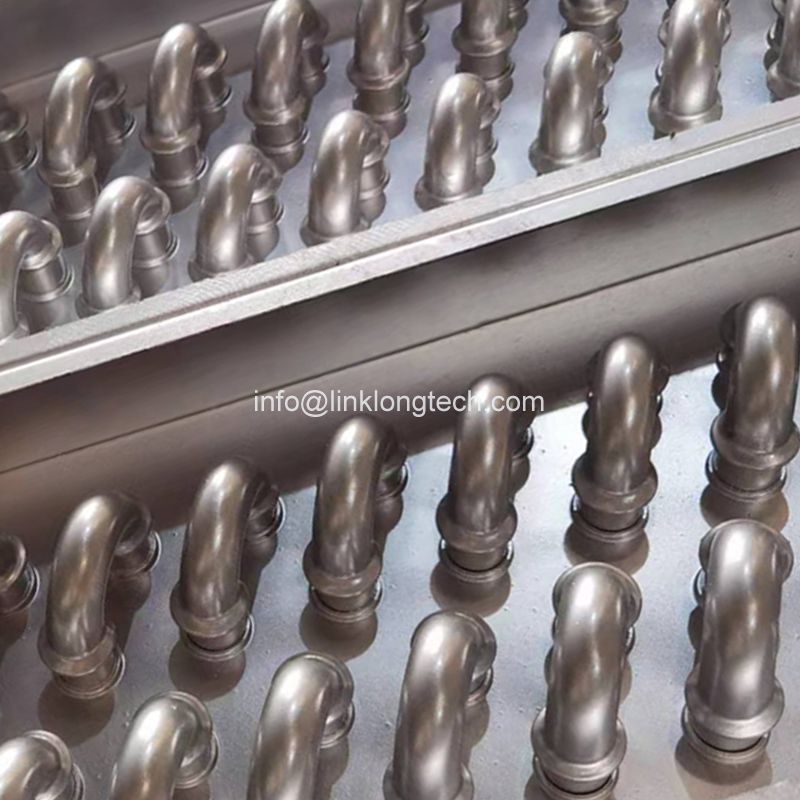

Stainless Steel Tube Fin Evaporator Coil for Waste Heat Recovery Unit
Principle of stainless steel evaporator coil:
Stainless steel evaporator is a kind of equipment used in liquid evaporation process. Stainless steel evaporator coil is usually composed of many stainless steel coil tubes and stainless steel fins. The tubes are filled with refrigerant, and the outside of the tubes is exchanged with air, liquid or oil. The principle of the stainless steel heat exchange device is to heat the liquid to its boiling point, so that the water or other components in the liquid are evaporated. During the evaporation process, the temperature of the liquid will increase and generate water vapor. When the water vapor reaches a certain concentration, the evaporated gas can be recondensed into a liquid by the condenser, and returned to the evaporator coil to continue the cycle. The function of the condenser is to convert the refrigerant from a gaseous state to a liquid state and release a large amount of heat. In a refrigeration system, the condenser is usually located after the compressor and is an important part of the refrigeration cycle.
Finned evaporator can quickly convert liquid refrigerant into gaseous refrigerant, thereby absorbing a large amount of heat and achieving a rapid cooling effect. In addition, stainless steel fin evaporator coils can also be designed and manufactured according to specific application needs to meet different cooling capacity and temperature requirements.
The stainless steel anti-corrosion evaporator customized by Foshan Linklong Technology Co., Ltd. has the following advantages:
1. High efficiency: Stainless steel evaporator coil has high heat transfer efficiency, can quickly heat liquid to boiling state, and can complete the liquid evaporation process efficiently.
2. Energy saving: Stainless steel tube stainless steel fin evaporator coil can effectively use energy and reduce energy waste, thereby reducing production costs.
3. Environmental protection: stainless steel evaporator heat exchanger will not produce harmful gas or waste, and will not pollute the environment. It is an environmentally friendly equipment.
4. Durable: The stainless steel fin evaporator coil is made of high-quality stainless steel material, which has good corrosion resistance and high temperature resistance, can adapt to various environmental and temperature conditions, and has a long service life.
5. Corrosion resistance: Stainless steel evaporator heat exchangers are usually made of stainless steel, such as 304 or 316 stainless steel. This material has good corrosion resistance and high temperature resistance, can withstand high temperature and strong acid and alkali solution corrosion, and prolongs the life of the equipment.
6. Easy to clean and maintain: 304 316L stainless steel evaporator coil has a smooth surface and simple structure, which is easy to maintain and clean. It can easily remove dirt and impurities, reducing maintenance costs and downtime.
Finned evaporator coil basic information:
Material: copper pipe, aluminum foil, galvanized sheet or aluminum sheet
Tube material: plain tube, inner threaded tube, stainless steel tube
Fin material: hydrophilic aluminum foil, light aluminum foil, epoxy resin aluminum foil, copper foil, stainless steel sheet
Copper pipe diameter: 7mm, 9.52mm, 12.7mm, 15.88mm, 16mm etc.

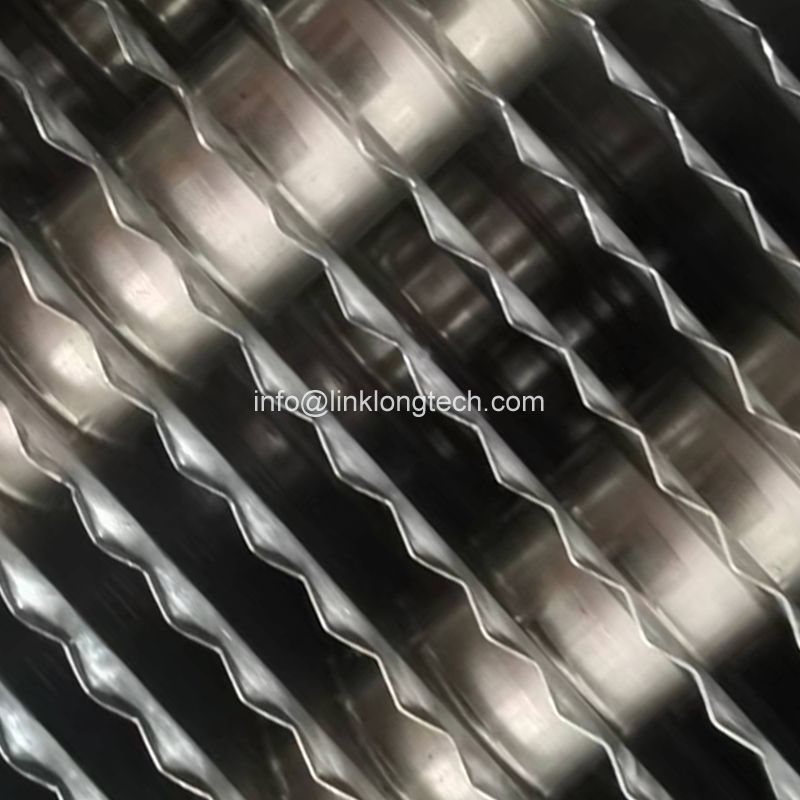

Fins type: windowed, flat, corrugated, pitted
Fin spacing: Produce fin spacing according to customer requested.
Applicable to: fin evaporators, fin condensers, surface air coolers for central air conditioner, R744 evaporators, R744 coolers, water or glycol air coolers (heaters), etc.
Housing: with or without housing.
Length: customized according to customer needs.
Hole spacing mold: 1.5~7.0mm or customized
Leak Test: No leaks under air pressure test.
Application: Finned tube evaporator coils are widely used in air conditioners, cold storage, central air conditioners, freezers, display cabinets, ice machines, dryers, soy sauce factories, pharmaceutical factories, electronics factories, automobile factories, battery factories, power plants, steel factories, glass factories, Refrigeration and heating industries such as ceramic factories.
Process flow: punching, bending, punching, stringing, expanding, degreasing, welding, leak testing, aluminum cleaning, drying, quality inspection, packaging.
Foshan Linklong Technology Co., Ltd. can produce the products according to your requirements or drawings.
Stainless steel evaporator coil heat exchanger product parameters:
SS tube dia. (mm) | Hole space (mm) | Row space (mm) | Fin materials | Fin Shapes | Fin pitch (mm) |
22 | 19.05 | Aluminum foil, copper foil, stainless steel | Flat fin, corrugated fin, window fin, pitted fin | 1.2-2.5 | |
25 | 21.65 | Aluminum foil, copper foil, stainless steel | Flat fin, corrugated fin, window fin, pitted fin | 1.4-4.0 | |
31.75 | 27.5 | Aluminum foil, copper foil, stainless steel | Flat fin, corrugated fin, window fin, pitted fin | 1.4-4.0 | |
38 | 32.91 | Aluminum foil, copper foil, stainless steel | Flat fin, corrugated fin, window fin, pitted fin | 1.8-6.0 |
Uncoated aluminum | Blue hydrophilic aluminum | Epoxy resin aluminum | Copper foil | Stainless steel foil |
|
|
|
|
|
Application industries of stainless steel anticorrosion evaporator coil:
Anti-corrosion evaporator coils are widely used in chemical, pharmaceutical, food, beverage, light industry, petrochemical and other fields. In these fields, equipment that needs to use heat exchangers includes reactors, dryers, distillation towers, etc. These devices need to transfer heat to the heated liquid or gas to realize the reaction, drying, distillation and other processes. The efficient heat transfer and high corrosion resistance of corrosion-resistant evaporators make them ideal for these devices.
Chemical industry: Stainless steel fin-tube evaporator coils are widely used in the chemical industry in the preparation and refining process of various chemicals, such as the manufacture of ammonia, alkali, acid, etc.
Pharmaceutical industry: Stainless steel finned evaporator coils are widely used in the pharmaceutical industry in the preparation of raw materials and finished products for the production of drugs.
Food industry: Stainless steel fin evaporator heat exchangers are widely used in the food industry for liquid extraction, concentration and drying in food processing.
Beverage industry: The beverage industry requires the preparation of high-purity beverage raw materials and preparations. Stainless steel finned evaporator coils can be used to remove moisture and other ingredients from beverage raw materials.
Petrochemical industry: 316L stainless steel evaporator coils are widely used in the petrochemical industry in the processing and refining of oil, natural gas, chemical raw materials, etc.
Seawater desalination field: Finned tube evaporators are also widely used in the field of seawater desalination to remove the salt in seawater by evaporation and make fresh water.
Environmental protection: Finned tube evaporators are also used in the field of environmental protection, mainly through evaporation to remove harmful substances in wastewater.
Light industry: Stainless steel evaporator coils are widely used in the extraction, concentration and drying of various liquids in the light industry, such as papermaking, textiles, leather and so on.
In short, stainless steel heat exchanger is an efficient, corrosion-resistant, high-temperature stable, wear-resistant, thermally stable and environmentally friendly heat exchange equipment, which is widely used in chemical, industrial, pharmaceutical and food fields. Evaporator coil heat transfer equipment can not only improve production efficiency, reduce equipment maintenance costs, but also guarantee product quality and safety.
