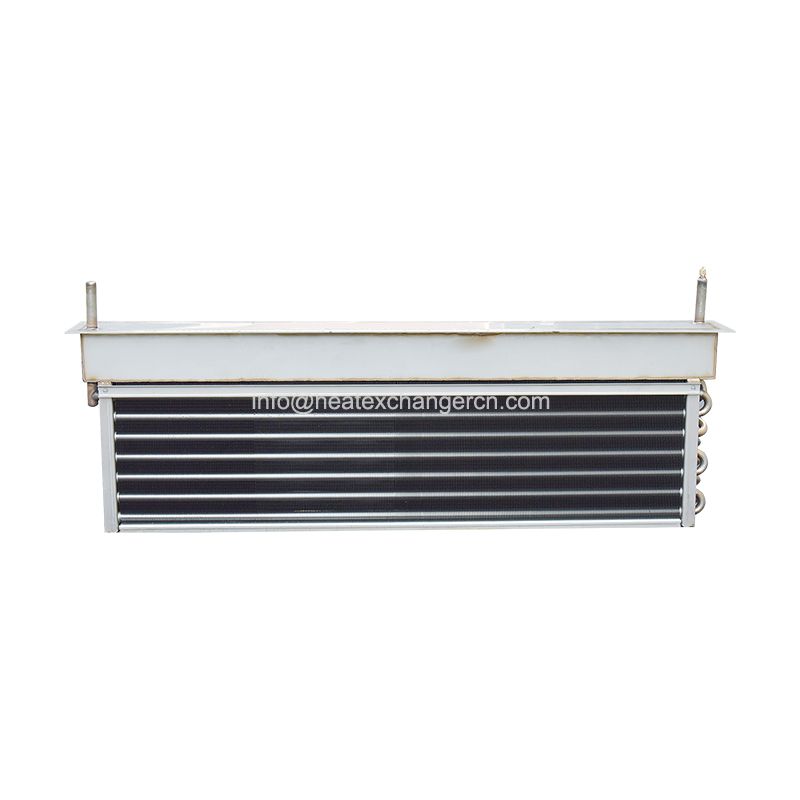

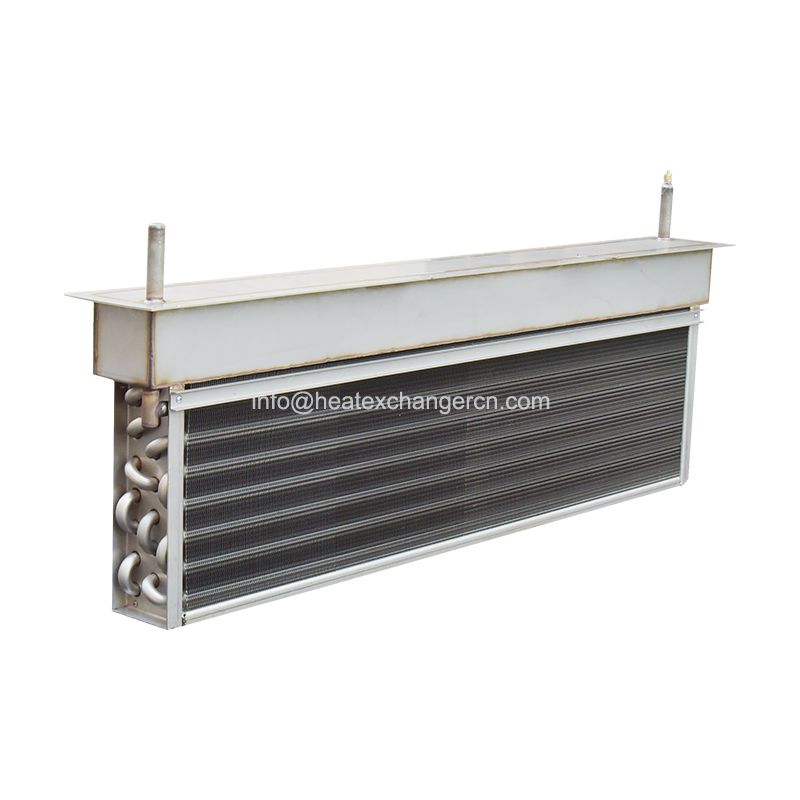

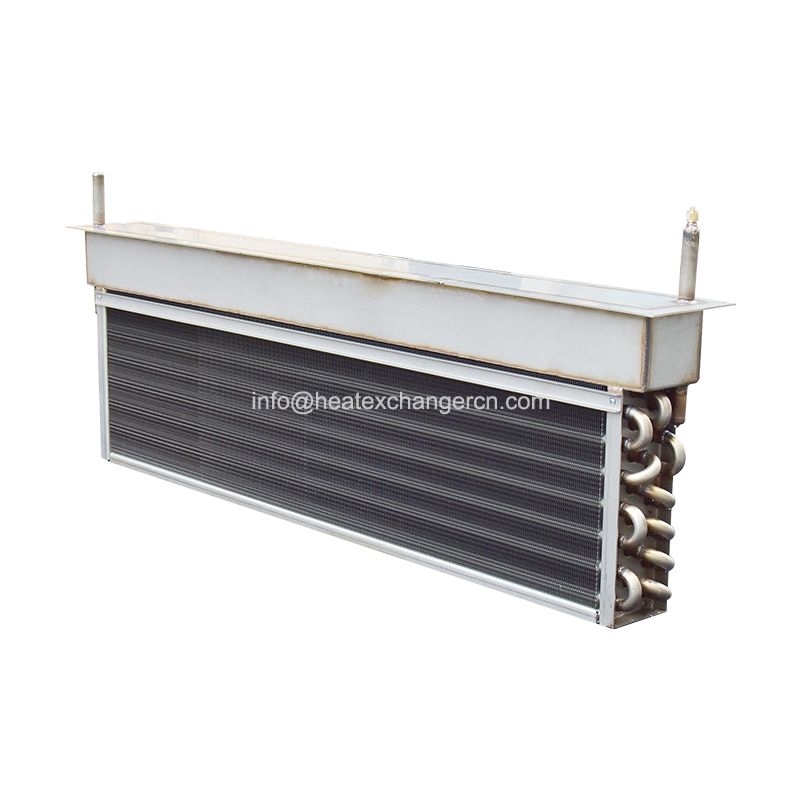

Titanium Condenser Coil Corrosion Resistant Condenser
According to the different cooling medium, the condenser heat exchanger can be divided into three categories: water-cooled condenser, air-cooled condenser and evaporative condenser.
Titanium Condenser Coil Corrosion Resistant Condenser
Working medium of condenser coil:
The media of titanium tube condenser coils mainly include water, air, cooling water, refrigerant, etc. Of these, water is the most commonly used condensation medium because it is cheap, readily available, and can regulate temperature and pressure. However, water will produce scale and corrosion during the condensation process, which affects the heat transfer effect. When air is used as the condensation medium, it can be used as the heat transfer medium in the natural convection condenser to improve the heat transfer effect. It requires higher pressure and temperature, and is easily affected by the ambient temperature. When cooling water is used as the condensation medium, the temperature and pressure can be adjusted so that it can be smoothly transformed into liquid condensate in the condenser and is less prone to scale and corrosion, but it requires greater power consumption. Refrigerant is the working substance in the condenser. Common refrigerants include Freon, ammonia, etc.
Basic information about finned titanium tube condenser coil:
Material: copper tube, aluminum foil, galvanized sheet or aluminum plate
Pipe material: plain pipe, internally threaded pipe, stainless steel pipe, titanium pipe, copper pipe, nickel copper pipe
Fin material: hydrophilic aluminum foil, light aluminum foil, epoxy resin aluminum foil, copper foil, stainless steel sheet
Pipe diameter: 7.94mm, 9.52mm, 12.7mm, 15.88mm, 16mm, 25mm etc.
Fins: shutter fins, flat fins, corrugated fins, pitted fins
Fin spacing: customization
Applicable to: fin evaporators, fin condensers, central air conditioning surface coolers, R744 evaporators, R744 coolers, water or glycol air coolers (heaters), etc.
Housing: With or without housing.
Length: customized according to customer needs.
Hole spacing mold: customized according to customer needs.
Leakage test: No leakage under air pressure test.
Scope of application: widely used in air conditioners, cold storage, central air conditioners, freezers, display cabinets, ice machines, dryers, soy sauce factories, pharmaceutical factories, electronics factories, automobile factories, battery factories, power plants, steel factories, glass factories, Ceramic factories and other refrigeration and heating industries.
Process flow: punching, bending, punching, stringing, expanding, degreasing, welding, leakage testing, aluminum sheet cleaning, drying, quality inspection, packaging.
We can produce heat exchangers according to the drawings provided by customers.
Titanium tube stainless steel fin condenser coil heat exchanger product parameters:
Pipe diameter (mm) | Hole pitch (mm) | Row pitch (mm) | Fin pitch (mm) | Fin materials | Fin type |
Φ7.94 | 22 | 19.05 | 1.2-2.5 | Aluminum foil Hydrophilic aluminum foil Epoxy resin aluminum foil Uncoated aluminum foil Copper foil Stainless steel foil | Flat sheet Corrugated sheet Shutter sheet Pitted sheet |
Φ9.52 | 25 | 21.65 | 1.4-4.0 | ||
Φ12.7 | 31.75 | 27.5 | 1.4-4.0 | ||
Φ15.88 Φ16 | 38 | 32.91 | 1.8-6.0 |
Uncoated aluminum | Blue hydrophilic aluminum | Epoxy resin aluminum | Copper foil | |
|
|
|
|
|
Corrosion-resistant titanium condenser application areas:
Condenser heat exchange device is an important equipment widely used in many fields. It is mainly used to heat the fluid to a high temperature state for heat exchange in subsequent processes. Fin condensers are widely used in industries such as chemical processing, power plants, refrigeration and air conditioning, refrigerators, cold storages, ice machines, petroleum refining and distillation processes, etc. They play a vital role in cooling and condensing the steam generated in these processes effect.
