Mining Immersion Cooling System V-type Dry Cooler
Dry cooler, also known as dry air cooler, dry cooling coil is a device used to cool high-temperature fluids to low temperatures. It works by using air or other gases to pass through a thermal insulation layer to separate the hot fluid from an external heat source or another hot fluid, thereby cooling the hot fluid.

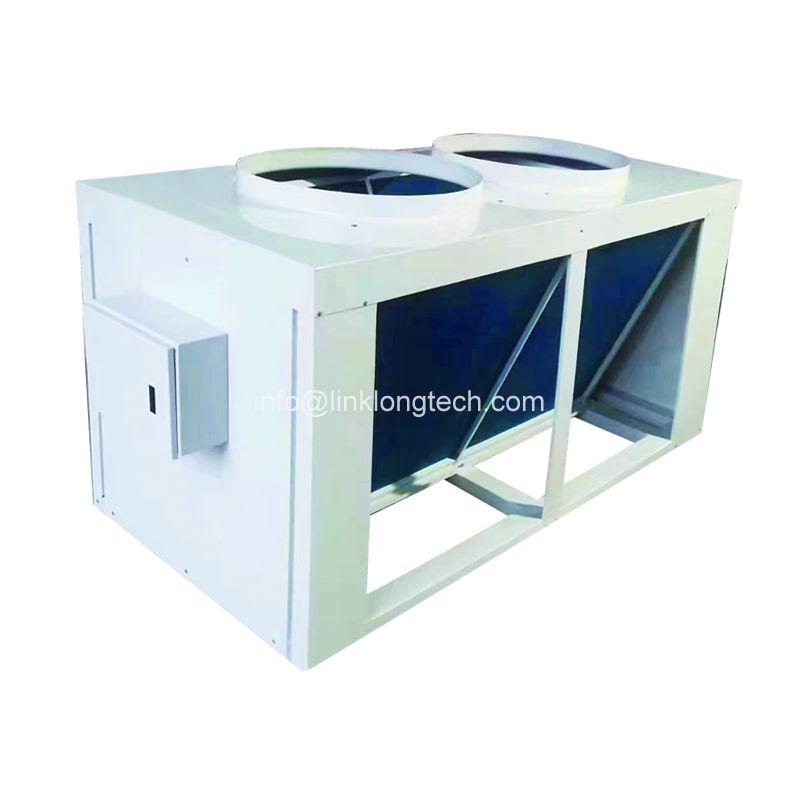

Mining Immersion Cooling System V-type Dry Cooler
In industrial applications, dry coolers are widely used in chemical, petroleum, electric power, metallurgy, machinery, food, beverage, pharmaceutical and other industries. It can not only be used to cool high-temperature fluids to low temperatures, but can also be used to heat and heat liquids and gases.
Advantages of dry coolers include:
1. Dry coolers do not require water or other liquids for cooling, so they do not produce any waste water or exhaust gas and are environmentally friendly.
2. Dry condensers can be used in a variety of temperature and pressure conditions because they are not affected by the boiling point of the liquid or the pressure of the gas.
3. Dry coils can handle many different fluids because they do not require mixing or chemical reactions with other substances.
4. Dry cooler coils can quickly cool high-temperature fluids to low temperatures because they take advantage of the rapid thermal conductivity of air or other gases.
5. Dry condenser coils can reduce the size and weight of equipment because they do not require water or other liquids for cooling.
Features of dry air cooler:
1. Adopt a new design V-shaped fin heat exchanger, which conforms to air flow and provides more sufficient heat exchange.
2. Efficient and compact fork-shaped fin design and wavy fins effectively improve heat exchange efficiency.
3. Optional high-quality internally threaded copper tubes have a larger heat transfer area on the refrigerant side and a higher heat transfer coefficient.
4. Optimized circuit design enables full heat exchange of refrigerant and more stable machine operation.
5. Galvanized steel plate with outdoor special spray coating, stainless steel bolts, more resistant to rust and corrosion.
6. Optimize the V-shaped angle and embed triangular structural characteristics to effectively improve the overall structural strength of the equipment.
7. An external metal cover is added to effectively avoid the risk of surface damage to the heat exchanger and ensure the safety of the equipment during transportation and installation.
V type dry cooler
Specification of V Shape Dry Cooler
Pipe diameter | Tube Materials | Pitch spacing | Row spacing | Fin materials | Sheet spacing |
Φ9.52 | Copper pipe Internal thread pipe White nickel copper pipe Aluminum pipe Stainless steel pipe (304, 316L) | 25.4mm 25mm | 22mm 21.65mm | Bare aluminum foil Hydrophilic aluminum foil Epoxy anticorrosive aluminum foil Copper foil | 1.5-12mm |
Φ12.7 | Copper pipe Internal thread pipe White nickel copper pipe Aluminum pipe Stainless steel pipe (304, 316L)
| 31.75mm | 27.5mm | Bare aluminum foil Hydrophilic aluminum foil Epoxy anticorrosive aluminum foil Copper foil
| 2.0-8.0mm |
Φ15.88 Φ16 | Copper pipe White nickel copper pipe Aluminum pipe Stainless steel pipe (304,316L)
| 38.1mm
| 33mm | Bare aluminum foil Hydrophilic aluminum foil Epoxy anticorrosive aluminum foil Copper foil Stainless steel sheet
| 2.0-14mm |
Φ25 | Copper pipe Plain pipe Stainless steel pipe (304,316L)
| 60mm | 59.5mm | Bare aluminum foil Hydrophilic aluminum foil Epoxy anticorrosive aluminum foil Copper foil Stainless steel sheet
| 2.0-8.0mm |
Application areas for dry coolers include:
1. Chemical industry: Dry cooler systems can be used to transfer the heat generated by chemical reactions to the air to maintain the progress of chemical reactions.
2. Petroleum industry: Dry cooler devices can be used to cool high-temperature crude oil or natural gas to lower temperatures for extraction and transportation.
3. Electric power industry: Dry cooler equipment can be used to transfer heat generated by power plants to the air to maintain the operation of generators.
4. Metallurgical industry: Dry coolers can be used to cool high-temperature metal liquids to lower temperatures for processing and casting.
5. Machinery industry: Dry air coolers can be used to cool high-temperature liquids and gases to lower temperatures for processing and casting.
6. Food and Beverage Industry: Dry air-cooled coolers can be used to cool beer, wine and other beverages to lower temperatures for storage and transportation.
7. Pharmaceutical industry: Dry air coolers can be used to cool drugs and other chemicals to lower temperatures for storage and transportation.
In short, the dry cooler heat exchanger is a very important equipment that is widely used in various fields. It brings great convenience to our production and life. In the future, with the continuous advancement of science and technology and the continuous expansion of application fields, dry coolers will be used and developed in more fields.
Flat type dry cooler
