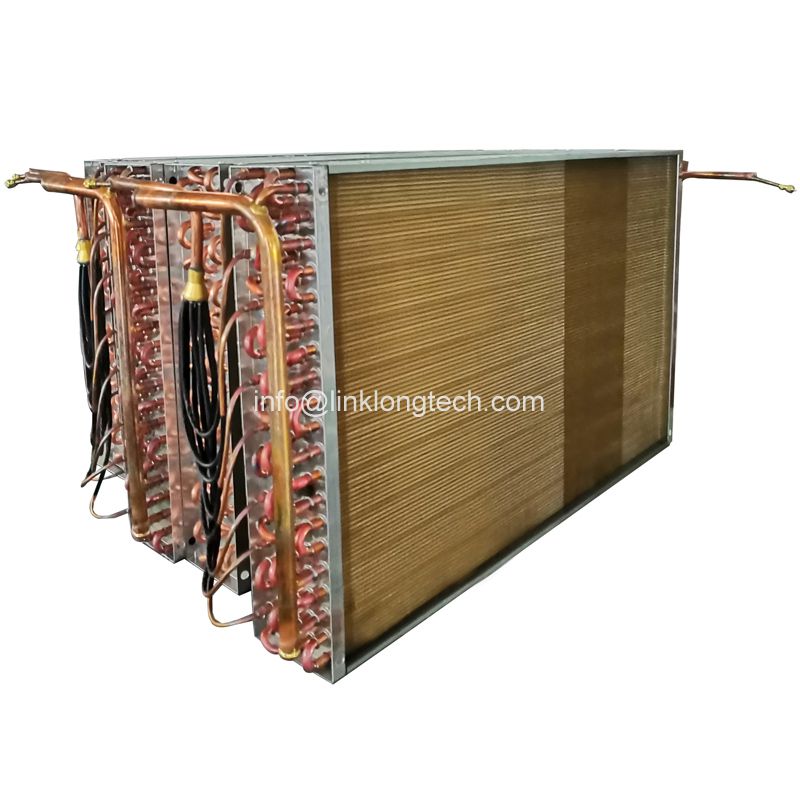

Epoxy resin aluminum fin tube evaporator corrosion resistant evaporator coils
Evaporator coil adopts φ7.94mm, φ9.52mm, φ12.7mm, φ15.88mm or φ16mm copper pipe, white nickel copper pipe, stainless steel pipe; Fin materials have no coating aluminum foil, hydrophilic aluminum foil, epoxy resin anticorrosive aluminum foil, copper foil, stainless steel sheet for customers to choose, to meet the needs of different working conditions and various combinations.
Epoxy resin aluminum fin tube evaporator corrosion resistant evaporator coils
Epoxy resin aluminum finned tube evaporator coil is a high-efficiency heat exchange equipment, which is a composite material made of epoxy resin coated on the surface of aluminum foil. During the preparation process, a layer of aluminum foil needs to be laid first, and then a layer of epoxy resin is coated on the surface of the aluminum foil. After curing at high temperature, the epoxy resin will be firmly bonded to the aluminum foil to form a strong and durable composite material. Linklong Technology's golden epoxy resin anti-corrosion evaporator uses aluminum foil fins made of epoxy resin protection, which can be used in combination with copper or stainless steel pipes to extend the service life of the equipment.
Principle of finned tube evaporator coils:
Fin evaporator coil is a device used in the liquid evaporation process. Its principle is to heat the liquid to reach the boiling point, so that the water or other components in the liquid are evaporated. During the evaporation process, the temperature of the liquid will rises and produces water vapor. When the water vapor reaches a certain concentration, the evaporated gas can be re-condensed into a liquid through the condenser and returned to the evaporator coil to continue the cycle. The function of the condenser coil is to convert the refrigerant from gaseous state to liquid state and release a large amount of heat. In a refrigeration system, the condenser is usually located after the compressor and is an important part of the refrigeration cycle.
Evaporator coil can quickly convert liquid refrigerant into gaseous refrigerant, thereby absorbing a large amount of heat and achieving a rapid cooling effect. In addition, evaporators can be designed and manufactured according to specific application needs to meet different cooling capacity and temperature requirements.
Finned evaporator coil basic information:
Material: copper pipe, aluminum foil, galvanized sheet or aluminum sheet
Tube material: plain tube, inner threaded tube, stainless steel tube
Fin material: hydrophilic aluminum foil, light aluminum foil, epoxy resin aluminum foil, copper foil, stainless steel sheet
Copper pipe diameter: 7mm, 9.52mm, 12.7mm, 15.88mm, 16mm etc.
Fins type: windowed, flat, corrugated, pitted
Fin spacing: Produce fin spacing according to customer requested.
Applicable to: Fin evaporators, fin condensers, surface air coolers for central air conditioner, R744 evaporators, R744 coolers, water or glycol air coolers (heaters), etc.
Housing: with or without housing.
Length: customized according to customer needs.
Hole spacing mold: 1.5~7.0mm or customized
Leak Test: No leaks under air pressure test.
Application: Finned tube evaporator coils are widely used in air conditioners, cold storage, central air conditioners, freezers, display cabinets, ice machines, dryers, soy sauce factories, pharmaceutical factories, electronics factories, automobile factories, battery factories, power plants, steel factories, glass factories, Refrigeration and heating industries such as ceramic factories.
Process flow: punching, bending, punching, stringing, expanding, degreasing, welding, leak testing, aluminum cleaning, drying, quality inspection, packaging.
Foshan Linklong Technology Co., Ltd. can produce the products according to your requirements or drawings.
Copper tube evaporator coil heat exchanger product parameters:
Copper tube dia. (mm) | Hole space (mm) | Row space (mm) | Fin materials | Fin Shapes | Fin pitch (mm) |
22 | 19.05 | Aluminum foil, copper foil, stainless steel | Flat fin, corrugated fin, window fin, pitted fin | 1.2-2.5 | |
25 | 21.65 | Aluminum foil, copper foil, stainless steel | Flat fin, corrugated fin, window fin, pitted fin | 1.4-4.0 | |
31.75 | 27.5 | Aluminum foil, copper foil, stainless steel | Flat fin, corrugated fin, window fin, pitted fin | 1.4-4.0 | |
38 | 32.91 | Aluminum foil, copper foil, stainless steel | Flat fin, corrugated fin, window fin, pitted fin | 1.8-6.0 |
Uncoated aluminum | Blue hydrophilic aluminum | Copper foil | ||
|
|
|
|
|
Features of epoxy resin aluminum foil evaporator coil:
1. High heat conduction efficiency: The epoxy resin aluminum foil evaporator has high heat conduction efficiency and can quickly transfer heat to the heated liquid or gas, so that it can generate higher heat in the same time and improve production efficiency.
2. High corrosion resistance: Epoxy resin has excellent corrosion resistance, and the combination with aluminum foil forms a strong protective film, which can effectively resist the erosion of various chemical substances such as acid, alkali, and salt, and protect aluminum foil from corrosion. Corrosion resistance evaporator coil can be applied to various chemical environments, reducing the maintenance cost of epoxy resin anti-corrosion evaporator.
3. Good thermal stability: Epoxy resin aluminum foil evaporator has good thermal stability, good high temperature resistance, and can be used at high temperature for a long time without deformation, melting or damage.
4. Good wear resistance: Aluminum foil has good wear resistance and can withstand the impact of high pressure and high flow rate fluids.
5. Lightweight: The epoxy resin aluminum fin evaporator coil is light in weight, which can reduce the weight and cost of the equipment and facilitate installation, transportation and maintenance.
6. Has good heat resistance: gold epoxy resin aluminum foil evaporator heat exchanger can also maintain stable performance in high temperature environment, has good fire resistance performance, and can be used for a long time in high temperature environment.
7. Good electrical conductivity: aluminum foil is a good conductive material, and epoxy resin has good adhesion properties, so after they are combined together, a material with good electrical conductivity can be formed, which can be widely used in the field of industrial manufacturing.
8. Good heat insulation performance: aluminum foil has good heat insulation performance, and epoxy resin has heat insulation performance and fire resistance, so after they are combined together, an epoxy resin with excellent heat insulation performance and fire resistance performance can be formed. Resin foil evaporator.
9. Environmental protection: The epoxy resin evaporator coil does not produce harmful exhaust gas, waste water and solid waste, and is environmentally friendly.
Application fields of epoxy resin evaporator coils:
Epoxy resin aluminum foil evaporator coil is widely used in chemical, pharmaceutical, food and other fields. In these fields, equipment that needs to use heat exchange equipment includes reactors, dryers, distillation towers, etc. These devices need to transfer heat to the heated liquid or gas to realize the reaction, drying, distillation and other processes. The efficient heat transfer and high corrosion resistance of epoxy resin foil evaporators make them ideal for these devices.
In the chemical industry, epoxy resin aluminum foil evaporators are often used in reaction kettles to transfer heat to the reactants to control the temperature and temperature distribution of the reaction to ensure the smooth progress of the reaction.
In the field of pharmaceuticals, epoxy resin aluminum foil evaporators are often used in dryers to transfer heat to drug solutions to achieve drug drying and concentration.
In the food field, epoxy resin aluminum foil evaporators are often used in distillation towers to transfer heat to food raw materials to achieve distillation and separation of food raw materials.
In short, epoxy resin aluminmum fin tube evaporator heat exchanger is an efficient, corrosion-resistant, high-temperature stable, wear-resistant, thermally stable and environmentally friendly heat exchange equipment, which is widely used in chemical, industrial, pharmaceutical and food fields. Evaporator coil heat transfer equipment can not only improve production efficiency, reduce equipment maintenance costs, but also guarantee product quality and safety.
